Visible in full sun
High-brightness outdoor LED. Your event doesn't have to wait for sunset, and it doesn't die if the sky is grey.
Thirty square metres. One big occasion.

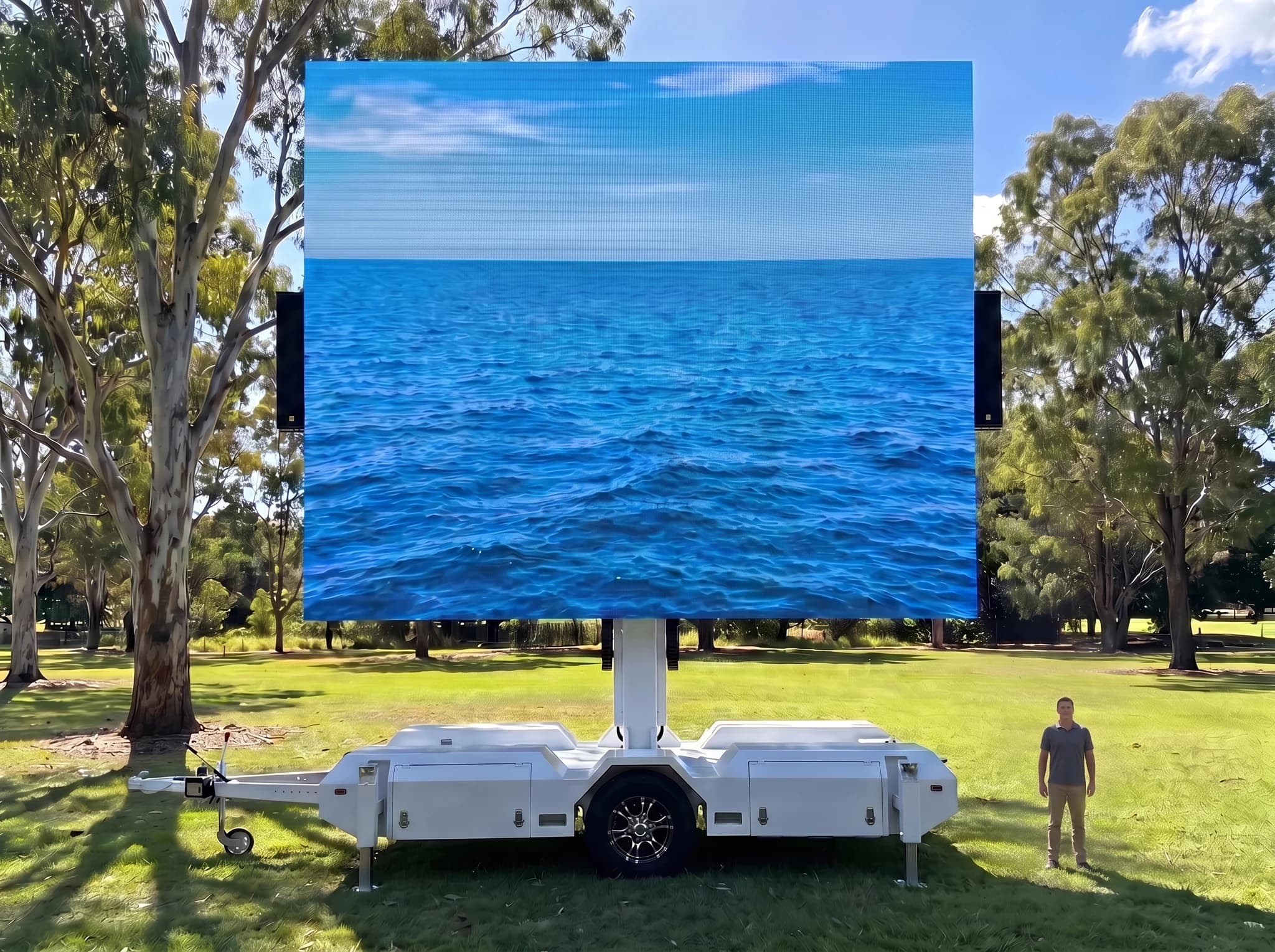

A 6.0 × 5.0 metre outdoor LED screen, delivered on a trailer. Visible in full daylight and set up in under an hour.
- metres
- 6.0 × 5.0
- of screen
- 30 m²
- to set up
- < 1 hr
Made for the outdoors.
Visible in full daylight. Self-supporting. Operated by a technician for the whole event.
Under an hour
Trailer-mounted and self-supporting. No scaffold, no crane, no builder, no ground works.
Goes almost anywhere
Grass, bitumen, ovals, car parks, showgrounds, foreshores. Needs vehicle access and a level position.
Runs anything
Live camera, broadcast feed, film, slides, sponsor loop, scoreboard, presentations.
A technician stays
On site for the whole event. Not dropped off and abandoned in a car park.
Documented
$20m public liability, engineering and wind certification, WHS documentation, electrical test-and-tag records — ready for your compliance pack.
Give it the right site.
The trailer needs vehicle access and a level position. Your venue or electrician must confirm the power supply before booking.
Screen position, power and content requirements are confirmed for your event.
A closer audience. A smaller format.
For outdoor courtyards, beer gardens and forecourts, the separately documented 16.5 m² format offers a closer-viewing option. These specifications are separate from the lead 30 m² screen. Availability, suitability and pricing require confirmation.

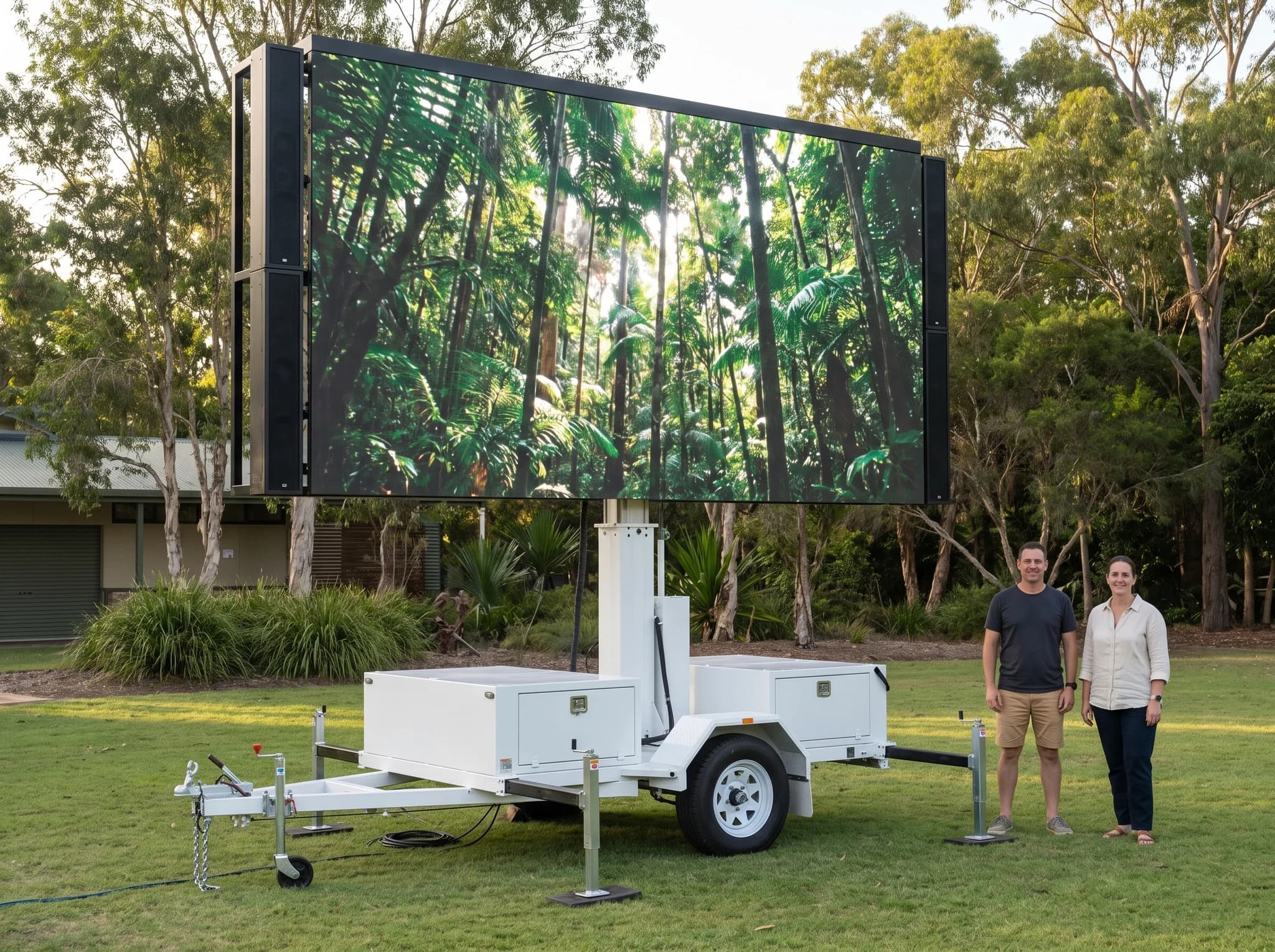

16.5 m² secondary format
A 5.5 by 3 metre screen on a trailer, lifted and rotated hydraulically so it faces wherever the people are.
Sharp from about 4 metres back. About 30 minutes to set up.
These specifications belong to the 16.5 m² unit. Availability, suitability and price require confirmation. No published price for this format.
The detail · 1408 × 768
Fine enough for text, scores and logos
- Sharp from about 4 metres back
- Reads a scoreboard or a price list
- Sponsor logos stay legible
- 120° viewing angle, left and right
The position · 360°
Turns to face wherever the people are
- Hydraulic lift, 2.5 metres of travel
- Rotates a full circle, then locks
- Four legs, levelled on site
- Folds flat to tow at 100 km/h
The sound · 1,500 W
Amplifier and four speakers, built in
- Four 200 W speakers on the frame
- Enough for a courtyard or a car park
- One less supplier on your run sheet
- Feeds into a venue PA if you have one
Detail at closer range
- Closest comfortable viewing
- 4 m
- Light points per m²
- 65,410
- On a typical stadium screen
- 22,500
Comparison reproduced from the secondary-unit specification, Sep 2026.
| Screen size | 5,500 × 3,000 mm |
|---|---|
| Screen area | 16.5 m² |
| Resolution | 1408 × 768 px |
| Dot pitch | 3.91 mm |
| Light point density | 65,410 per m² |
| Brightness | 5,000 cd/m² or better |
| Viewing angle | 120° H / 120° V |
| Refresh rate | 3,840 Hz |
| Rated lamp life | 100,000 hrs |
| Cabinet | Cast aluminium, 7.5 kg |
| Servicing | Front and rear |
| Operating temperature | −20 to 50 °C |
| Trailer, travelling | 7,020 × 2,100 mm |
|---|---|
| Lift range | 2,500 mm |
| Rotation | 360°, hydraulic |
| Screen folding | Hydraulic |
| Gross weight | 3,250 kg |
| Chassis | ALKO, two axles |
| Brakes | Electric, with breakaway |
| Towing speed | to 100 km/h |
| Supporting legs | 4, 300 mm extension |
| Screen draw, typical | 3.8 kW |
| Screen draw, peak | 11.2 kW |
| Sound | 1,500 W amp · 4 × 200 W |
The secondary format on site
Access
Towed in. Needs a vehicle route and level ground.
Footprint
7.0 × 2.1 m parked. Legs extend 300 mm each side.
Setup
About 30 minutes. Lowers by hand if power fails.
Power
Confirm the supply with us before booking.
These specifications belong to the 16.5 m² unit. Availability, suitability and price require confirmation.
Your event. The big screen.
Start with your date, your location and what you want to put on screen. We’ll work through the practical details.
Plan your event
Quotes valid 14 days.
